SAF Viewports units are for use in low-pressure applications (5 PSI) where 100% shutoff is not required.

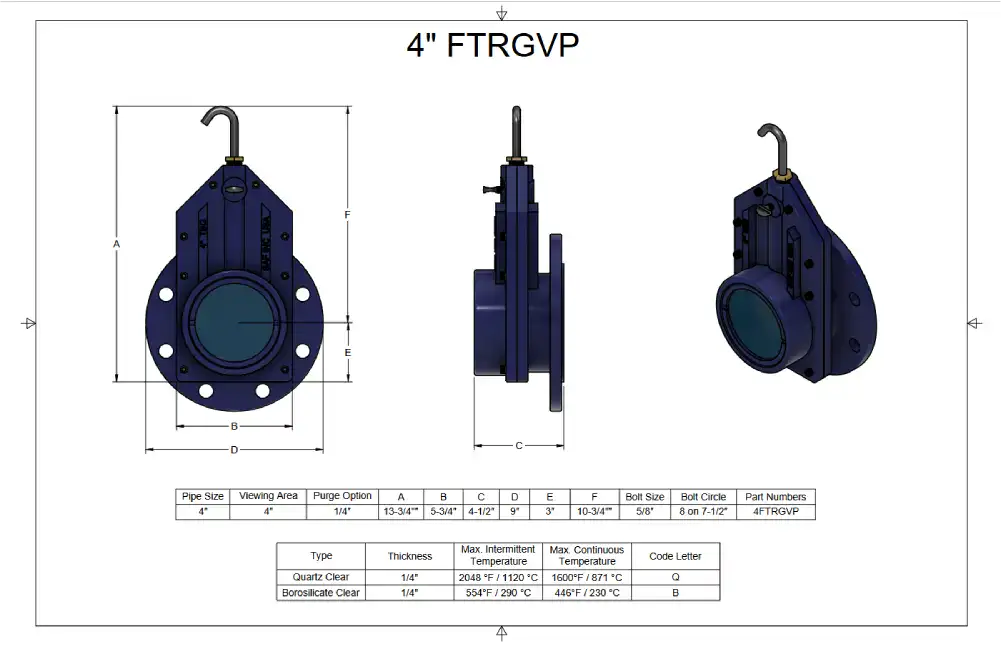

The special model F/T Gate View Port adds a new dimension to the SAF Viewports Line. This unit, available in 3″ or 4″ pipe size, mounts to a mating flange, while the viewing components are housed in a NPT threaded body half. The standard stainless steel slide arrangement in the gate gives added protection and life to the lens during operation, and allows maintenance to be performed with added safety during vessel down-time. Additional cooling can be obtained by adding a purge connection on the glass or vessel side of the gate housing. Standard purge is at 3 o’clock but may be customized upon request.
This special half-flanged, half-threaded unit is only available in 3″ and 4″ sizes.
The standard unit is a Class 30 gray iron with a maximum temperature of 425 °F. Custom units made from Carbon Steel and Stainless Steel by special order.
