SAF Viewports units are for use in low pressure applications (5 PSI) where 100% shutoff is not required. SAF Viewports Gate Valves are used to regulate air flow and provide shut-off.
- 100% full flow and operate with clean or dirty air.
- Precision machined
- Self-cleaning stainless steel slide can be adjusted easily to any position.
- These valves are for use in low pressure applications where 100% shutoff is not required.
- The valves are manufactured of cast iron from stock varying from 3″ to 10″ flanged.
- Various types of slide operation available.
- The standard unit is a Class 30 gray iron with maximum temperature of 425 °F. Custom units made from Carbon Steel and Stainless Steel by special order.

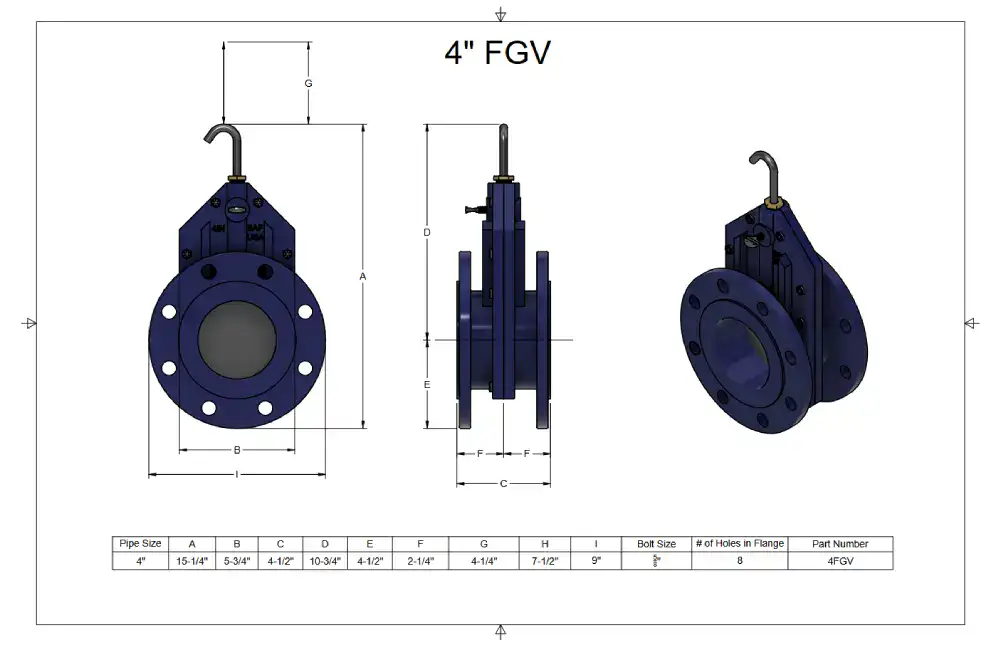

| Part Number | Pipe Size | A | B | C | D | E | F | G | H | I | Bolt Size | # of Holes |
| 3FGV | 3” | 12-1/8” | 4-3/4” | 4-1/4” | 8-3/8” | 3-3/4” | 2-1/8” | 3-1/4” | 6” | 7-1/2” | 5/8” | 4 |
| 4FGV | 4” | 15-1/4” | 5-3/4” | 4-1/4” | 10-3/4” | 4-1/2” | 2-1/8” | 4-1/4” | 7-1/2” | 9” | 5/8” | 8 |
| 6FGV | 6” | 22-1/4” | 9” | 4-3/4” | 16-3/4” | 5-1/2” | 2-3/8” | 6-1/4” | 9-1/2” | 11” | 3/4" | 8 |
| 8FGV | 8” | 28-1/2” | 11” | 5-1/8” | 21-3/4” | 6-3/4” | 2-9/16” | 8-1/4” | 11-3/4” | 13-1/2” | 3/4" | 8 |
| 10FGV | 10” | 31-3/4” | 13-1/2” | 5-3/8” | 23-3/4” | 8” | 2-11/16” | 10-3/8” | 14-1/4” | 16” | 7/8” | 12 |
